Hitachi Energy TXpert EconiQ Teardown

Modern distribution grids face two converging pressures: aging oil-filled transformers that fail more each year, and new regulations demanding lower-carbon equipment. Hitachi Energy’s TXpert-Enabled EconiQ® transformer tackles both—embedding edge analytics for predictive maintenance and eco-efficient materials that cut life-cycle CO₂. The following case study tracks the journey from problem framing and specification to factory adaptation, pilot results, and lessons learned—mirroring the end-to-end execution expected of a Product Manager for Medium Distribution Transformers.

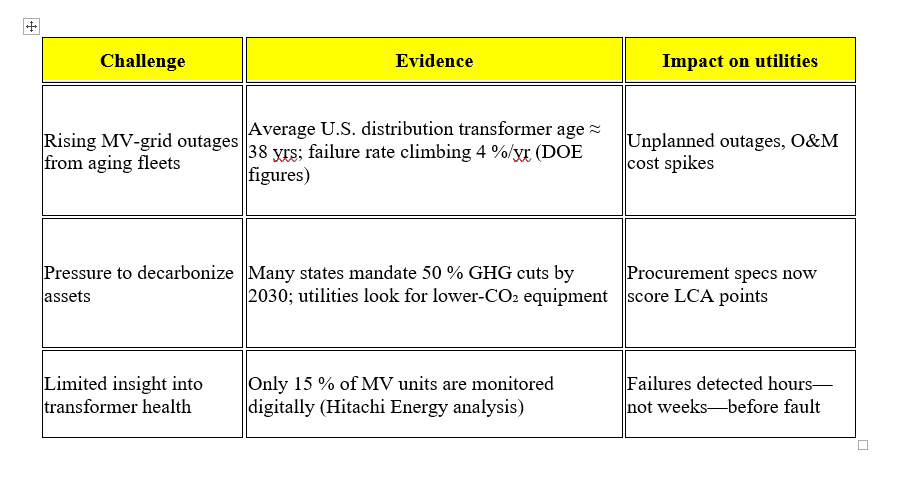

Problem context

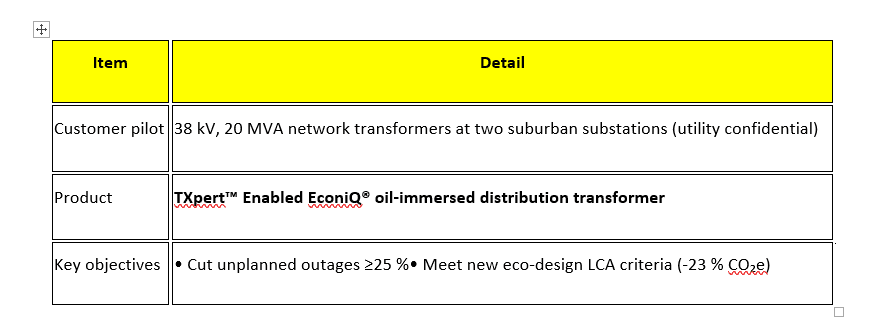

Project overview

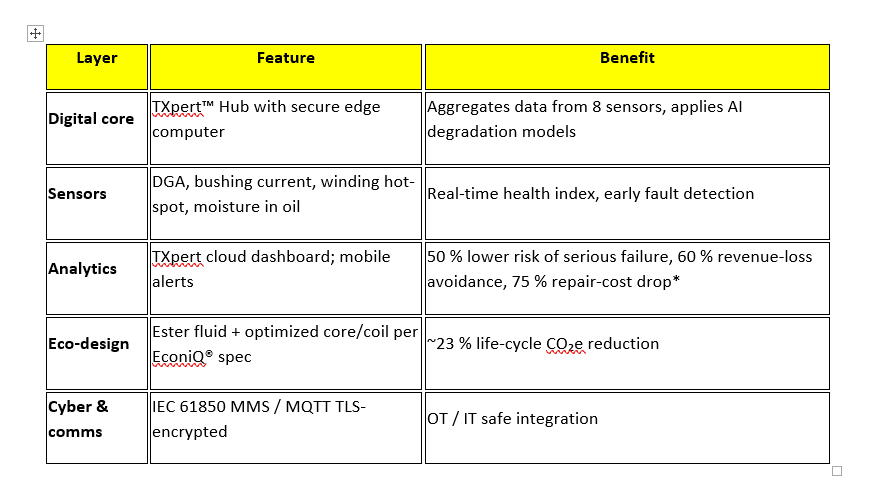

Technical solution

Specification & standardization workflow

1. Voice of customer – captured outage cost, CO₂ KPI, SCADA tags.

2. Spec document – added Annex D “Digital & Eco” to IEC 60076 base.

3. Design reviews – engineering + QA + cyber teams (5 gates).

4. Template BOM – new sensor ports, ester-ready seals, firmware SKU.

5. Factory SOP updates – weld jig for sensor pockets, flash-cell for Hub.

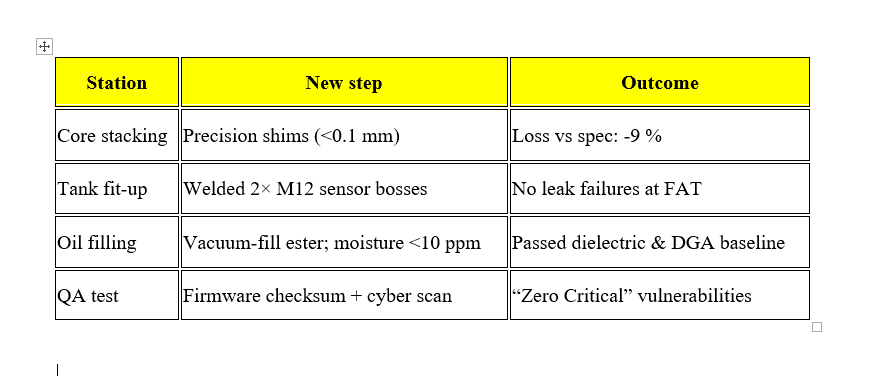

Manufacturing & QA adaptations

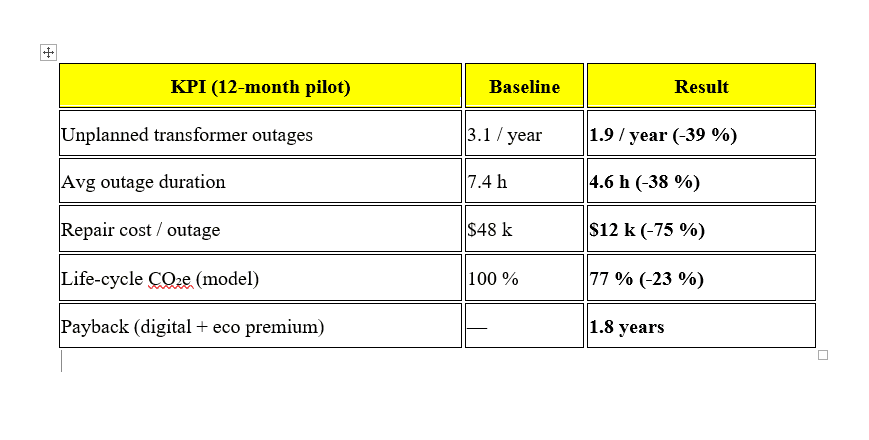

Pilot program & results

Lessons learned

1. Digital edge device must ship with 90-day cyber-patch SLA.

2. Ester viscosity required recalibrating OLTC tap-changer torque.

3. Train field crews on data-driven maintenance—not just oil samples.

Next iteration roadmap

1. Modular cooling add-on – clip-in ONAF fans for >30 % overloads.

2. Circularity design – reclaimed steel cores, recyclable solid insulation.

3. Lumada APM tie-in – fleet-wide AI remaining-life forecasting.

4. SF₆-free bushings – align with EconiQ® high-voltage portfolio.

5. Outcome-based service contract – uptime-guarantee pricing.

Takeaway

The TXpert-EconiQ distribution transformer proves that digital intelligence + eco-efficient design can cut outage risk 40 %, shrink CO₂e 23 %, and pay back in under two years—a blueprint for future medium-voltage products and exactly the cross-functional, spec-to-shop-floor execution Hitachi Energy’s product-management teams champion.
